Hydro Chem

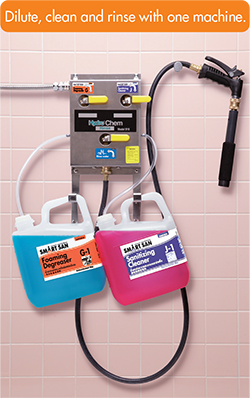

Easy to operate proportioning system for foam cleaning and sanitizing floors and equipment.

-	Ensures dilution at optimal concentration.
-	Improves detergency and efficacy with foam spraying.
-	Can be used for a variety of tasks including cleaning floors, walls and waterproof processing equipment.
-	Aspirator type water pressure operation requires no power source.

Chemical dilution + instant foam spraying.

Rinse water spraying.

Direct dilution into squeeze and spray bottles.
(With optional proportioning wand)

1. Foamer Wand
3. Discharge hose

2. Trigger Sprayer
4. Inlet water hose

Proportioning System	Hydro Chem 919 Main tank, metering tip kit, bottle hooks for detergent, hose hanger
Type	Aspirator
Dimensions	W70mm x D228mm x H432cm (Excluding hose)
Weight	2.3kg (Main tank)
Usable water pressure	0.21Mpa (2.1kgf/cm2) ~ 0.27Mpa (2.8kgf/cm2)
Dilution rate	Adjustable with the metering tips

Proper dilution rate depends on desired concentrationg. Please contact your local Saraya sales representative for further information.
